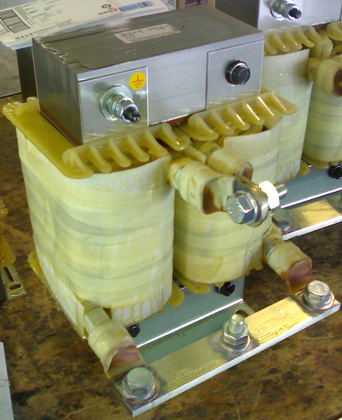

Series KU
Features
- Throttle to: DIN EN 61558-2-20, VDE 0570 Part 2-20
- Optionally with UL-certified class 155(F) insulation system
- Un = 230V 50Hz
- Uk = 4%
- Insulation class T40E
- Currents and inductances according to the table under "Technical information"
- Degree of protection IP00
- Optionally available with housing
- Foot bracket for mounting
- Cable lug connection
- Protection class I
Input voltages
- freely selectable
Output voltages
- freely selectable
Customer-specific power and voltages on request!
Series KU
| Type | Current | Inductance | Dimensions | Weights | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | mH | a | b | c | d | e | f | CU kg | Total kg | |
| KU 150-600 | 600 | 0,05 | 210 | 260 | 275 | 100 | 108 | 11,0 | 10,20 | 29,0 |
| KU 150-800 | 800 | 0,04 | 210 | 270 | 275 | 100 | 108 | 11,0 | 12,00 | 31,00 |
